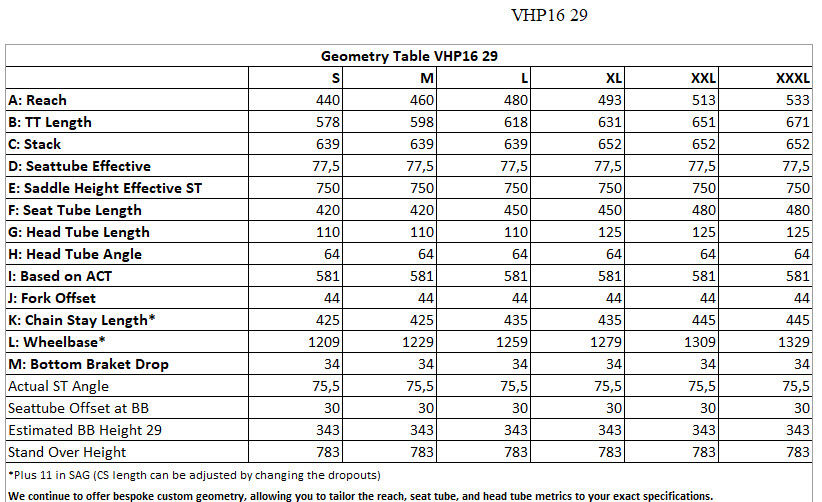

![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=703,fit=crop/m2WWEnkkbPtVDn5D/16-29-YyvXr2yj3Dsoyoz3.jpg)
![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=200,fit=crop/m2WWEnkkbPtVDn5D/16-29-YyvXr2yj3Dsoyoz3.jpg)
Specifications:
Size Options: S, M, L, XL, XXL, XXXL (Bespoke Available)
Rear Travel: 160mm (Convertable to 150mm or 180mm*)
Shock: Trunnion 205x65 (Mounting Hardware: 22x8mm)
Fork Compatibility: 160-180mm (Crown to Axle: 567-591mm)
Headset: ZS44/28.6 | ZS56/40 (for Tapered Forks)
Rear Brake: IS 2000 (Compatible with 160-220mm Discs)
Rear Hub/Axle: 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread
Bottom Bracket: 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)
Chainline Idler Pulley: Adjustable 49-50.5-52-53.5**
Tire Clearance: 29" x 2.6
Seattube: 31.6mm Inside Diameter / 35mm Outside Diameter
Seatpost: 31.6mm with Internal Seatpost Cable Routing
Seatpost MAX Insert: 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm
Bottle: 750ml (Sideload Bottle Cage Only)
Idler Pulley: 16T N/W SS (Durable and Efficient)
Bearings: One Size 15x28x7 Max Type Black Oxide Bearings
Weight: 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M)
Frame Material: Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075
Axles Material: Titanium Grade 5 (Eliminates Hex Wear)
*Can be achieved by replacing the shock mount and/or shock.
**Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainline

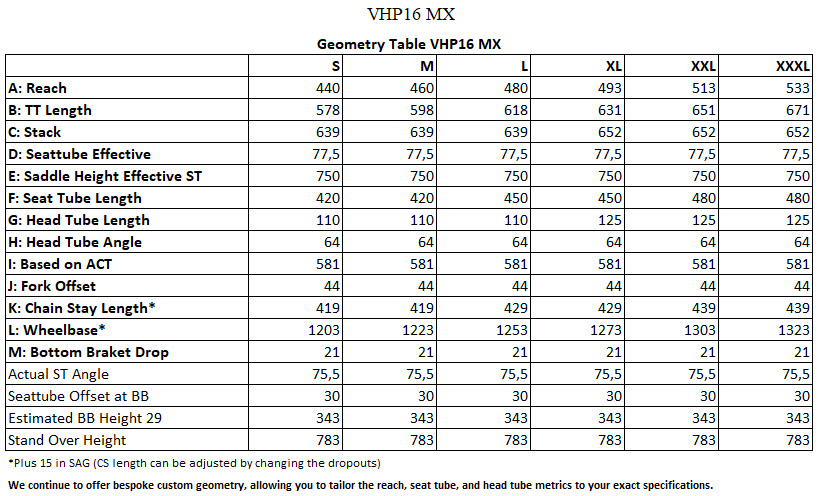

![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=696,fit=crop/m2WWEnkkbPtVDn5D/16-mx-YrD1yXLa3QFLleww.jpg)
![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=198,fit=crop/m2WWEnkkbPtVDn5D/16-mx-YrD1yXLa3QFLleww.jpg)
Specifications:
Size Options: S, M, L, XL, XXL, XXXL (Bespoke Available)
Rear Travel: 160mm (Convertable to 150mm or 180mm*)
Shock: Trunnion 205x65 (Mounting Hardware: 22x8mm)
Fork Compatibility: 160-180mm (Crown to Axle: 567-591mm)
Headset: ZS44/28.6 | ZS56/40 (for Tapered Forks)
Rear Brake: IS 2000 (Compatible with 160-220mm Discs)
Rear Hub/Axle: 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread
Bottom Bracket: 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)
Chainline Idler Pulley: Adjustable 49-50.5-52-53.5**
Tire Clearance: 27.5" x 2.6
Seattube: 31.6mm Inside Diameter / 35mm Outside Diameter
Seatpost: 31.6mm with Internal Seatpost Cable Routing
Seatpost MAX Insert: 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm
Bottle: 750ml (Sideload Bottle Cage Only)
Idler Pulley: 16T N/W SS (Durable and Efficient)
Bearings: One Size 15x28x7 Max Type Black Oxide Bearings
Weight: 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M)
Frame Material: Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075
Axles Material: Titanium Grade 5 (Eliminates Hex Wear)
*Can be achieved by replacing the shock mount and/or shock.
**Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainline

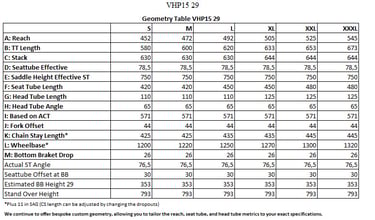

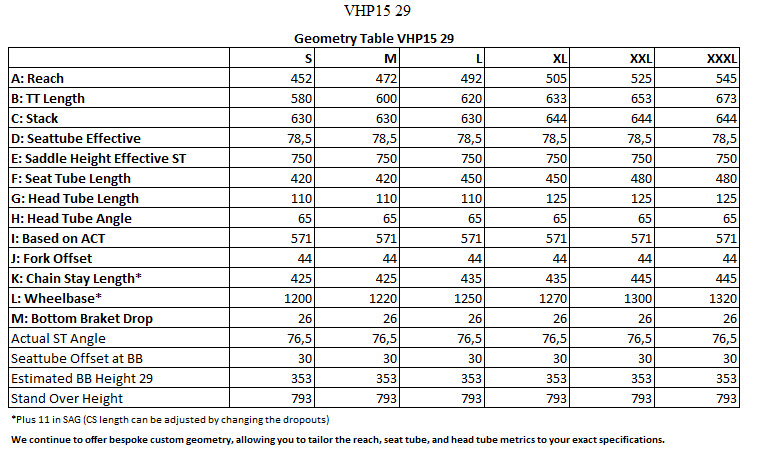

![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=673,fit=crop/m2WWEnkkbPtVDn5D/15-29-Aq2e9N0gj2FJ6wGd.jpg)
![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=192,fit=crop/m2WWEnkkbPtVDn5D/15-29-Aq2e9N0gj2FJ6wGd.jpg)
Specifications:
Size Options: S, M, L, XL, XXL, XXXL (Bespoke Available)
Rear Travel: 150mm (Convertable to 160mm or 180mm*)
Shock: Trunnion 205x60 (Mounting Hardware: 22x8mm)
Fork Compatibility: 150-160mm (Crown to Axle: 557-571mm)
Headset: ZS44/28.6 | ZS56/40 (for Tapered Forks)
Rear Brake: IS 2000 (Compatible with 160-220mm Discs)
Rear Hub/Axle: 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread
Bottom Bracket: 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)
Chainline Idler Pulley: Adjustable 49-50.5-52-53.5**
Tire Clearance: 29" x 2.6
Seattube: 31.6mm Inside Diameter / 35mm Outside Diameter
Seatpost: 31.6mm with Internal Seatpost Cable Routing
Seatpost MAX Insert: 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm
Bottle: 750ml (Sideload Bottle Cage Only)
Idler Pulley: 16T N/W SS (Durable and Efficient)
Bearings: One Size 15x28x7 Max Type Black Oxide Bearings
Weight: 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M)
Frame Material: Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075
Axles Material: Titanium Grade 5 (Eliminates Hex Wear)
*Can be achieved by replacing the shock mount and/or shock.
**Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainlinee your text here...

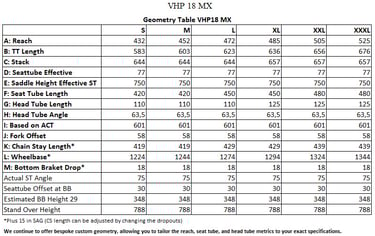

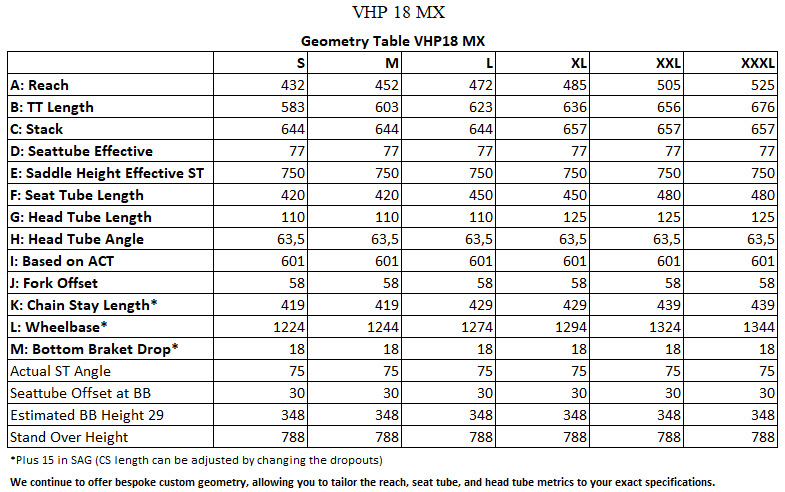

![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=721,fit=crop/m2WWEnkkbPtVDn5D/18-mx-dWxeD0Mk5zHMLW4K.jpg)
![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=206,fit=crop/m2WWEnkkbPtVDn5D/18-mx-dWxeD0Mk5zHMLW4K.jpg)
Specifications:
Size Options: S, M, L, XL, XXL, XXXL (Bespoke Available)
Rear Travel: 182mm (Convertable to 150mm or 160mm*)
Shock: Trunnion 225x75 (Mounting Hardware: 22x8mm)
Fork Compatibility: 180-200mm (Crown to Axle: 591-601mm)
Headset: ZS44/28.6 | ZS56/40 (for Tapered Forks)
Rear Brake: IS 2000 (Compatible with 160-220mm Discs)
Rear Hub/Axle: 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread
Bottom Bracket: 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)
Chainline Idler Pulley: Adjustable 49-50.5-52-53.5**
Tire Clearance: 27.5" x 2.6
Seattube: 31.6mm Inside Diameter / 35mm Outside Diameter
Seatpost: 31.6mm with Internal Seatpost Cable Routing
Seatpost MAX Insert: 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm
Bottle: 750ml (Sideload Bottle Cage Only)
Idler Pulley: 16T N/W SS (Durable and Efficient)
Bearings: One Size 15x28x7 Max Type Black Oxide Bearings
Weight: 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M)
Frame Material: Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075
Axles Material: Titanium Grade 5 (Eliminates Hex Wear)
*Can be achieved by replacing the shock mount and/or shock.
**Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainlinee your text here...

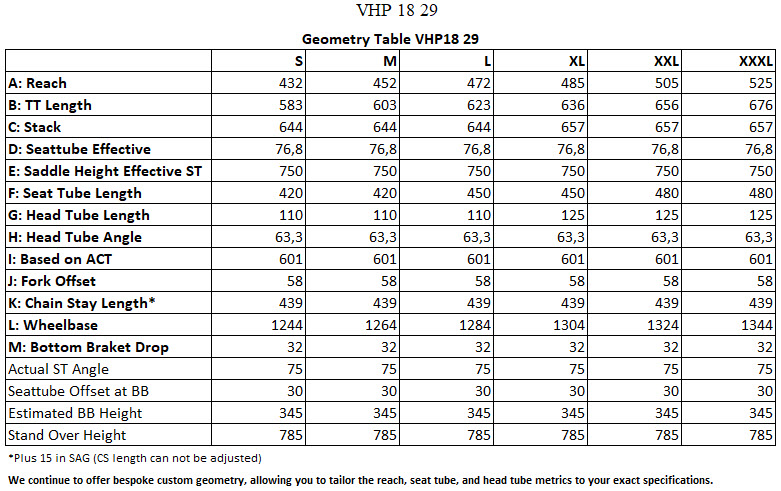

![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=721,fit=crop/m2WWEnkkbPtVDn5D/18-29-mP4PgNPogyt6VPEj.jpg)
![Kavenz geometri](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=206,fit=crop/m2WWEnkkbPtVDn5D/18-29-mP4PgNPogyt6VPEj.jpg)
Specifications:
Size Options: S, M, L, XL, XXL, XXXL (Bespoke Available)
Rear Travel: 184mm (Convertable to 150mm or 160mm*)
Shock: Trunnion 225x75 (Mounting Hardware: 22x8mm)
Fork Compatibility: 180-200mm (Crown to Axle: 591-601mm)
Headset: ZS44/28.6 | ZS56/40 (for Tapered Forks)
Rear Brake: IS 2000 (Compatible with 160-220mm Discs)
Rear Hub/Axle: 12 - 148mm (BOOST) Axle Length: 171mm with 17mm 12x1 Thread
Bottom Bracket: 73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)
Chainline Idler Pulley: Adjustable 49-50.5-52-53.5**
Tire Clearance: 29" x 2.6
Seattube: 31.6mm Inside Diameter / 35mm Outside Diameter
Seatpost: 31.6mm with Internal Seatpost Cable Routing
Seatpost MAX Insert: 420 ST= 280mm, 450 ST= 310mm, 480 ST= 340mm
Bottle: 750ml (Sideload Bottle Cage Only)
Idler Pulley: 16T N/W SS (Durable and Efficient)
Bearings: One Size 15x28x7 Max Type Black Oxide Bearings
Weight: 3.28 kg (RAW, Including Hardware, Excluding Shock, Size M)
Frame Material: Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075
Axles Material: Titanium Grade 5 (Eliminates Hex Wear)
*Can be achieved by replacing the shock mount and/or shock.
**Transitioning from a 55 chainring to a 53.5 idler pulley optimizes overall chainlinee your text here...

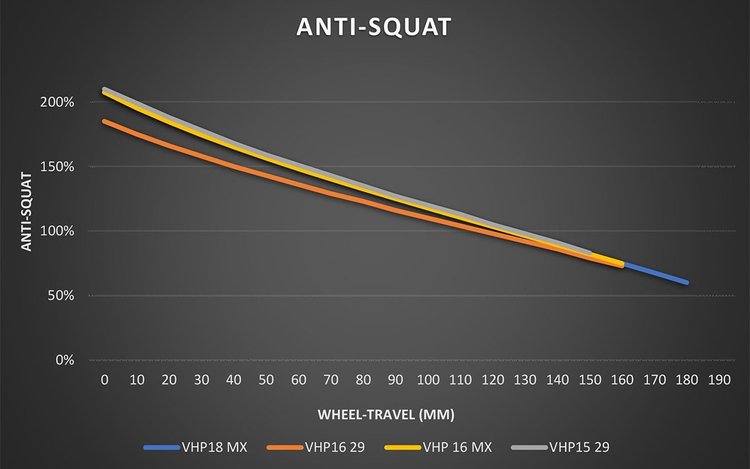

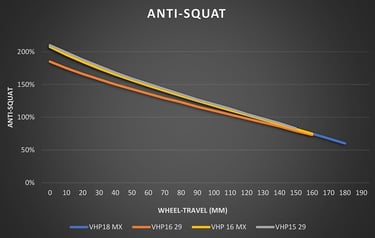

![Anti squat Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=720,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-anti-squat-mk3Ly8KBlDUK02R6.jpg)
![Anti squat Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=208,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-anti-squat-mk3Ly8KBlDUK02R6.jpg)

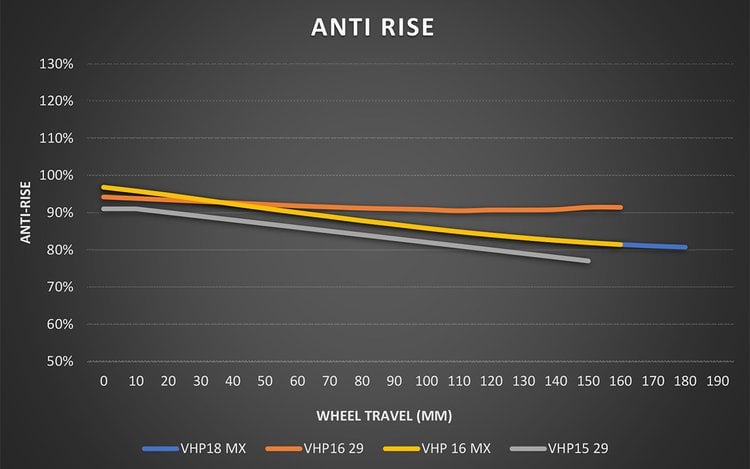

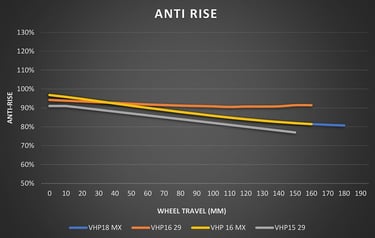

![Anti rise Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=720,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-anti-rise-YKboa1geWQuZ13xG.jpg)
![Anti rise Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=208,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-anti-rise-YKboa1geWQuZ13xG.jpg)

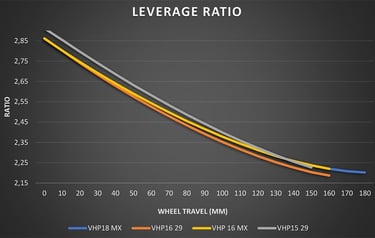

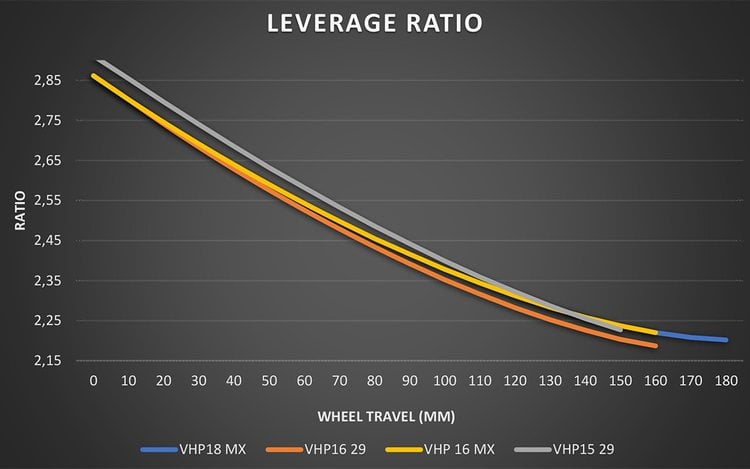

![Leverage ratio kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=720,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-leverage-ratio-A3QEPaVLByS56Zxy.jpg)
![Leverage ratio kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=208,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-leverage-ratio-A3QEPaVLByS56Zxy.jpg)

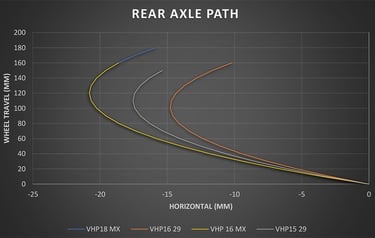

![Rear axle path Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=720,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-rear-axle-path-dWxMwegzbvSq3rg9.jpg)
![Rear axle path Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=208,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-rear-axle-path-dWxMwegzbvSq3rg9.jpg)

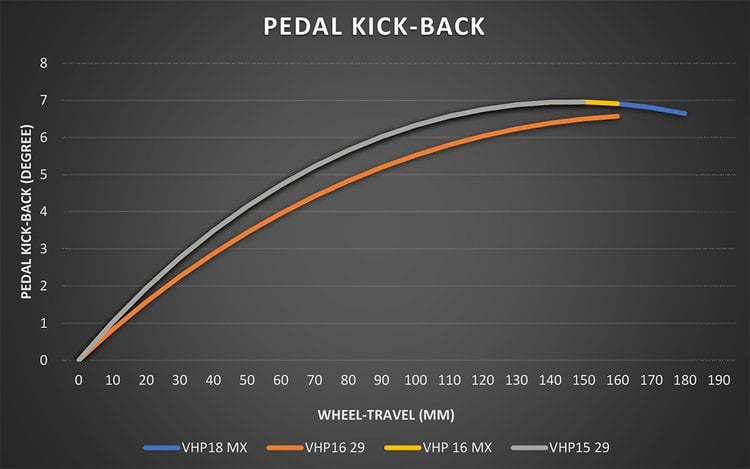

![Pedal kick back Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=720,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-pedal-kickback-YZ9n7ag6NJfqNE8n.jpg)
![Pedal kick back Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=208,fit=crop/m2WWEnkkbPtVDn5D/kavenz-kinematics-15-16-18-pedal-kickback-YZ9n7ag6NJfqNE8n.jpg)

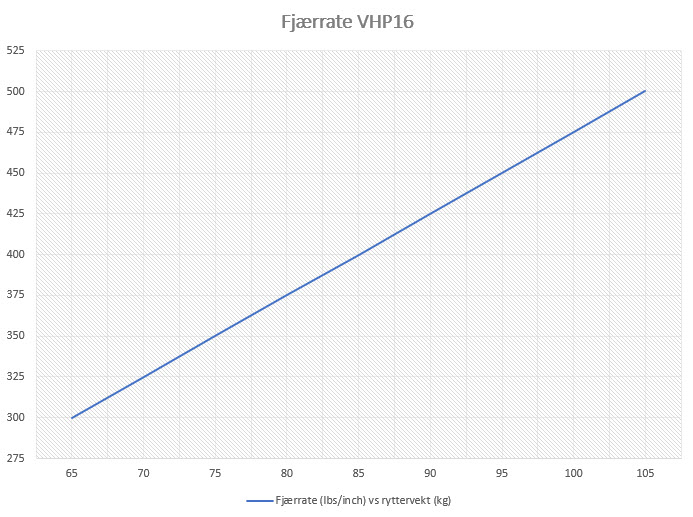

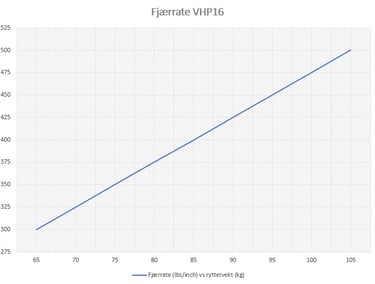

![Fjærrate Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=859,fit=crop/m2WWEnkkbPtVDn5D/fja-rrate-vhp16-Awvj1V0oP5uyK6XX.jpg)
![Fjærrate Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=248,fit=crop/m2WWEnkkbPtVDn5D/fja-rrate-vhp16-Awvj1V0oP5uyK6XX.jpg)

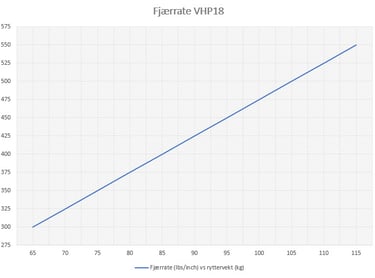

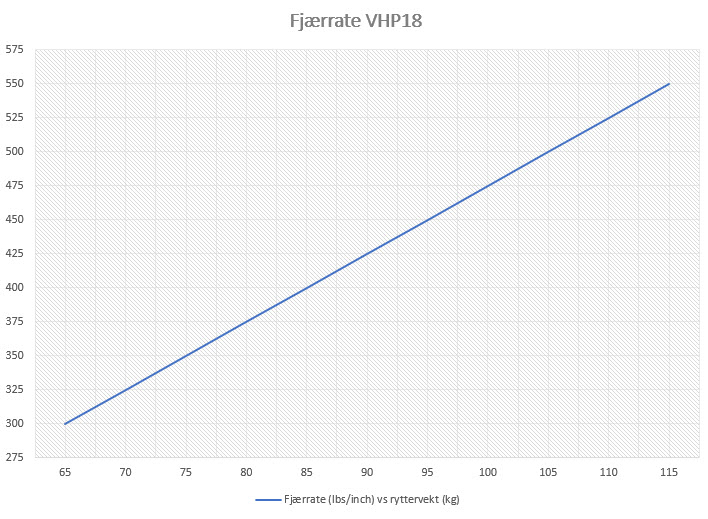

![Fjærrate Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=1151,h=844,fit=crop/m2WWEnkkbPtVDn5D/fja-rrate-vhp18-AVL3024XgxIN6M5W.jpg)
![Fjærrate Kavenz](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=243,fit=crop/m2WWEnkkbPtVDn5D/fja-rrate-vhp18-AVL3024XgxIN6M5W.jpg)
